A research team has developed a novel strategy to construct heterogeneous microstructure in α + β titanium alloys (Ti-alloys) by precisely controlling metastable phase transformation, achieving an excellent balance between strength and ductility. This work, published in Acta Materialia, provides a new paradigm for the microstructural design of high-performance Ti-alloys for critical applications in aerospace and deep-sea engineering.
Ti-alloys are essential structural materials for strategic sectors. Among them, TC16 alloy (Ti–3Al–5Mo–4.5V, wt.%), as one of α + β Ti-alloys, have been widely used for aviation fasteners. In the early 2000s, a team from the Institute of Metal Research, Chinese Academy of Sciences, tackled a key processing bottleneck: cracking during cold heading of TC16 wires. By inducing the β → α″ → α + β transformation, they produced the ultrafine α microstructure that withstood 80% cold deformation without cracking, enabling the successful fabrication of cold-headed fasteners.
Prof. MA Yingjie, Prof. YANG Rui and their collaborators have now developed a more advanced optimization strategy based on controlled metastable ω/α″ phases to induce α nucleation and construct heterogeneous structures. By precisely controlling β phase stability through quenching from α + β phase region, multiply metastable phases can be precipitated. Subsequent multi-step aging treatments activate metastable phase-induced α nucleation, enabling the construction of multi-scale heterogeneous microstructure and overcoming the strength-ductility trade-off.
Their systematic work has revealed three key mechanisms. First, combining theoretical calculations with advanced characterization, they elucidated the mechanism of ω-assisted αs nucleation, demonstrating that isothermal ω particles provide effective nucleation sites for secondary α (αs), governed by the interplay of concentration fields, stress fields and ω/β interface characteristics. Second, using transmission Kikuchi diffraction, they revealed that refinement of αs promotes the formation of Type B variant pairs—a phenomenon attributed to ω-assisted nucleation amplifying elastic interactions and driving autocatalytic nucleation. Third, by synergistically activating ω/α″ regulation pathways through quenching from α + β phase region combined with multi-stage aging treatments, they constructed a four-scale heterogeneous α (FSH-α) microstructure comprising micron-scale αp alongside three distinct αs morphologies: micron-scale αs, nanoscale αs, and ladder-like αs. This FSH-α structure exhibits a superior yield strength without sacrificing ductility, compared to the conventional annealed microstructure and two-scale heterogeneous α (TSH-α) microstructure.
The enhanced performance arises from the multi-tiered network of hetero-interface, where plastically deformable micron-scale αs domains act as mechanical buffers, generating additional hetero-deformation induced (HDI) stress while coordinating strain to maintain ductility.
This work establishes a multi-scale framework of “metastable phase regulation – multi-scale heterostructure fabrication – deformation behavior/mechanism properties optimization”, providing important theoretical guidance for microstructure design and engineering application of Ti-alloys with excellent strength and high ductility.

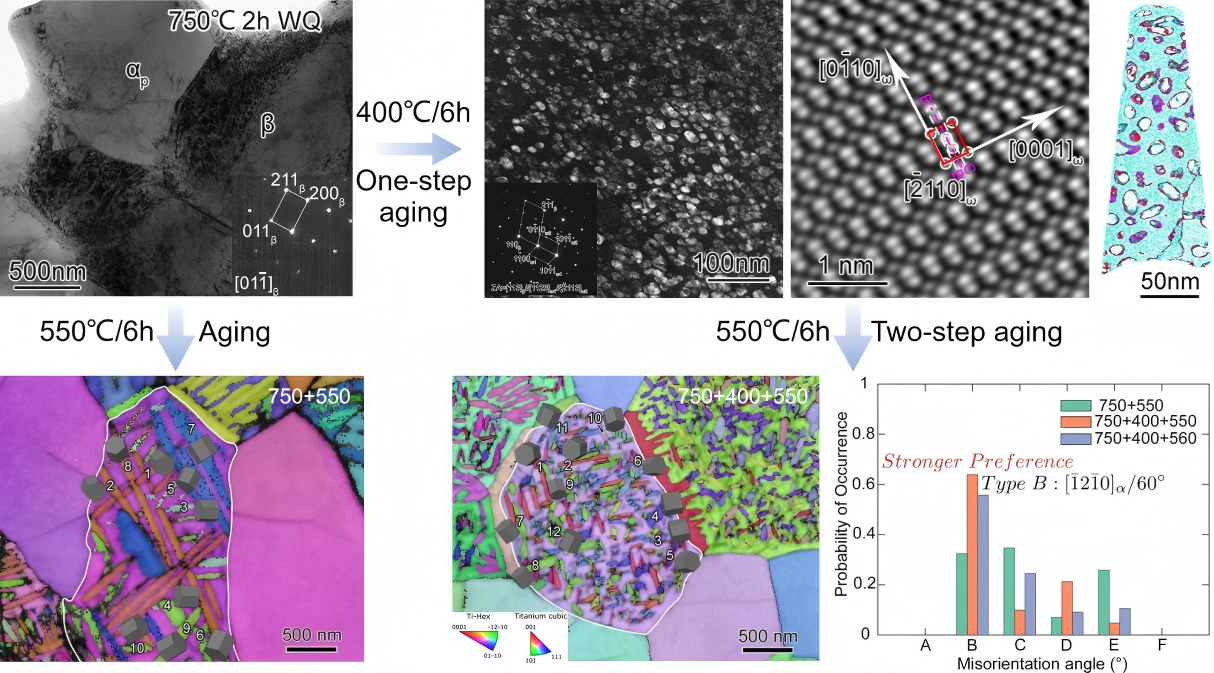

Nanoscale αs lamellae and their variant distribution formed by the ω-assisted nucleation mechanism. (Image by IMR)

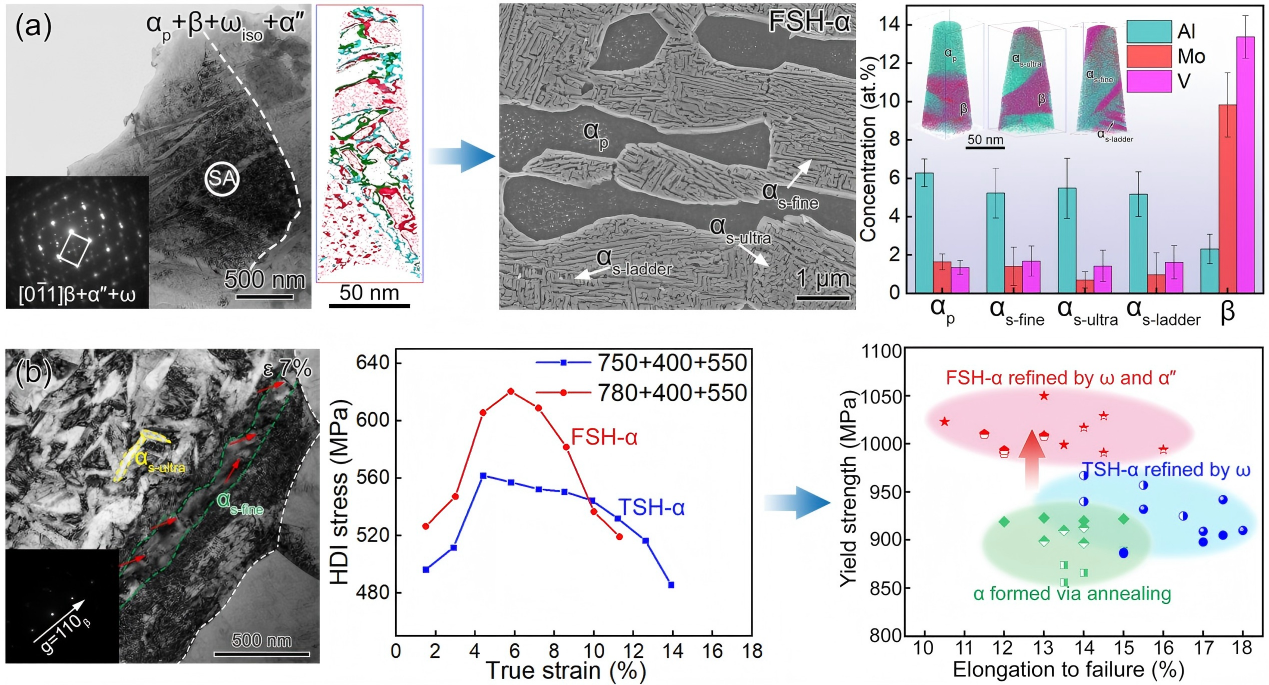

Fabrication strategy and mechanical behavior of the four-scale heterogeneous α (FSH-α) microstructure: (a) FSH-α fabricated by synergistically activating ω/α″ regulation pathways; (b) Multi-tiered network of hetero-interface promoting synergistic enhancement of strength and ductility. (Image by IMR)
